3m Distance EMC Chamber

Name: 3m Distance EMC Chamber
Brand: LOPU
Price: 1 USD

Quality 3m Distance EMC Chamber for sale

Place of Origin : Nanjing, China

Brand Name : LOPU

Model Number : LOPU

Certification : CE ROHS

Contact Now

The anechoic chamber is mainly used to simulate free space environment for EMC testing, and it can effectively eliminate external electromagnetic interference and a variety of reflective interference. Such 3m EMC anechoic chamber, can used to accomplish the standard 1m-distance test as MIL-STD-461F, GJB151/152A, and 3m EMC standard test for civil electronic and electrical products as civil standards GB9254-1998, GB/T 17626.3-1998.

Anechoic Chamber: 9m×6m×6m

1.Shielding effectiveness of shielding body

14KHz	Magnetic field	> 80dB
100KHz	Magnetic field	> 90dB
10kHz~1GHz	Electrical field	> 110dB
300MHz~1GHz	Plane wave	> 110dB
1GHz~ 5 GHz	Plane wave	> 100dB

2. Performance of the anechoic chamber

Normalized site attenuation bias (NSA)	NSA < ± 4dB (GJB2926-97)
The test surface field uniformity (30MHz-1GHz)	0 ~ 6dB (GJB2926-97)
Site voltage standing wave ratio (S－VSWR) ( 1GHz- 5 GHz )	S - VSWR ≤ 5.5dB (CISPR 16 - 1 - 4 : 2008 ( Ed 2.1)
Background level	6dB under the required limited level (EN50147)

Product Tags:

EMC CHAMBER

SEMI-ANECHOIC CHAMBER

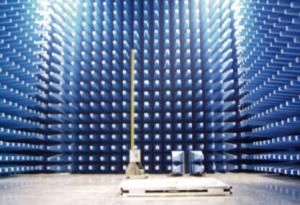

3m Distance EMC Chamber Images
